We supply high quality General Purpose Rectifier Diode, forward current 1.0 to 10Amp, Reverse voltage from 50 to 1000Volts, Axial-leaded and R1/DO41/A405 Package type, part number is available like FR101,FR102,FR103,FR104,FR105,FR106,FR107.Specification: Features: - Low cost - High current capability.High reliability.Low forward voltage drop.
Related Rectifier Diodes:
1N49333,1N4934,1N4935,1N4936,1N4937,FR151, FR152,FR153,FR154, FR155,FR156, FR157,FR201,FR202, FR203,FR204, FR205,FR206,FR207, FR301,FR302,FR303,FR304,FR305,FR306,FR307, FR601,FR602,FR603, FR604,FR605,FR606, FR607
Rugao liantuo Electronics provides the most popular axial Bridge Rectifiers which are common used in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications.
(1) Original quantity with wholesale price
(2) Quick and Safe Delivery
(3) Experienced Service Team
(4) 24 hours OnLine Customer Service
(5) OEM customized service offered
(6) Good feedback from all over the world
(7) Full range products for choice
We are offering Schottky Barrier Diode's characteristics ：
Features
· Glass Passivated
· Low reverse leakage
· High forward surge capability
· High temperature soldering guaranteed:
· Lead Free Finish, RoHS Compliant
Mechanical Data
· Glass Passivated
· Low reverse leakage
· High forward surge capability
· High temperature soldering guaranteed:
· Lead Free Finish, RoHS Compliant
Electrical Characteristics:
Related High Fast Recovery Diodes
| IF(AV) (A) | VRRM(V) | VF (V) | Trr (ns) | Package | |||||||
| 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | ||||
| 1.0 | FR101 * | FR102 * | FR103 * | — | FR104 ** | FR105 ** | FR106 *** | FR107 *** | 1.3 | *150 **250 ***500 | DO-41 |
| FR101S * | FR102S* | FR103S* | — | FR104S ** | FR105S ** | FR106S *** | FR107S *** | 1.3 | *150 **250 ***500 | A-405 | |
| FR101G * | FR102G * | FR103G * | ----- | FR104G ** | FR105G ** | FR106G *** | FR107G *** | 1.3 | *150 **250 ***500 | DO-41 | |
| — | ----- | ----- | — | BA157 * | BA158 * | ----- | BA159 ** | 1.3 | *150 **300 | DO-41 | |
| 1N4933 | 1N4934 | 1N4935 | ----- | 1N4936 | 1N4937 | — | — | 1.2 | 150 | DO-41 | |
| 1N4933G | 1N4934G | 1N4935G | — | 1N4936G | 1N4937G | — | — | 1.2 | 150 | DO-41 | |
| RGP10A * | RGP10B * | RGP10D * | — | RGP10G * | RGP10J ** | RGP10K ** | RGP10M *** | 1.3 | *150 **250 ***300 | DO-41 | |
| RS1A * | RS1B * | RS1D * | — | RS1G * | RS1J ** | RS1K *** | RS1M *** | 1.3 | *150 **250 ***500 | SMA | |
| FS1A * | FS1B * | FS1D * | — | FS1G * | FS1J ** | FS1K *** | FS1M *** | 1.3 | *150 **250 ***500 | SMA | |
| RA * | RB * | RD * | ----- | RG * | RJ ** | RK *** | RM *** | 1.3 | *150 **250 ***500 | SOD123 | |
| ----- | ----- | ES1Z | ----- | ES1 | ES1A | ----- | — | 2.5 | 90 | DO-41 | |
| 1.3 | ----- | ----- | BYD33D * | ----- | BYD33G * | BYD33J * | BYD33K ** | BYD33M ** | 1.3 | *250 **300 | DO-15 |
| 1.5 | FR151 * | FR152 * | FR153 * | ----- | FR154 * | FR155 * | FR156 ** | FR157 ** | 1.3 | *150 **300 | DO-15 |
| FR151G * | FR152G * | FR153G * | — | FR154G * | FR155G * | FR156G ** | FR157G ** | 1.3 | *150 **300 | DO-15 | |
| — | — | BYV95A | — | BYV95B | BYV95C | — | — | 1.35 | 150 | DO-15 | |
| RGP15A * | RGP15B * | RGP15D * | — | RGP15G * | RGP15J ** | RGP15K ** | RGP15M *** | 1.3 | *150 **250 ***300 | DO-15 | |
| — | — | — | — | RU3 ** | RU3A ** | RU3B * | RU3C *** | *1.5@1.0 **1.5 ***2.5 | 100 | DO-15 | |
| 2.0 | FR201 * | FR202 * | FR203 * | — | FR204 * | FR205 * | FR206 ** | FR207 ** | 1.3 | *150 **300 | DO-15 |
| FR201G * | FR202G * | FR203G * | — | FR204G * | FR205G * | FR206G ** | FR207G ** | 1.3 | *150 **300 | DO-15 | |
| RS2A * | RS2B * | RS2D * | — | RS2G * | RS2J ** | RS2K *** | RS2M *** | 1.3 | *150 **250 ***500 | SMB | |
| 2.0 | RGP20A * | RGP20B * | RGP20D * | — | RGP20G * | RGP20J ** | RGP20K ** | RGP20M *** | 1.3 | *150 **250 ***300 | DO-15 |
| — | BY296 | BY297 | — | BY298 | — | BY299 | — | 1.3 | 150 | DO-201AD | |
| 2.5 | FR251 * | FR252 * | FR253 * | — | FR254 * | FR255 * | FR256 ** | FR257 ** | 1.3 | *150 **300 | DO-15 |
| FR251G * | FR252G * | FR253G * | — | FR254G * | FR255G * | FR256G ** | FR257G ** | 1.3 | *150 **300 | DO-15 | |
| RGP25A * | RGP25B * | RGP25D * | — | RGP25G * | RGP25J ** | RGP25K ** | RGP25M *** | 1.3 | *150 **250 ***300 | DO-15 | |
| 3.0 | FR301 * | FR302 * | FR303 * | — | FR304 * | FR305 * | FR306 ** | FR307 ** | 1.3 | *150 **300 | DO-201AD |
| FR301G * | FR302G * | FR303G * | — | FR304G * | FR305G * | FR306G ** | FR307G ** | 1.3 | *150 **300 | DO-202AD | |
| RS3A * | RS3B * | RS3D * | — | RS3G * | RS3J ** | RS3K *** | RS3M *** | 1.3 | *150 **250 ***500 | SMC | |
| RGP30A * | RGP30B * | RGP30D * | — | RGP30G * | RGP30J ** | RGP30K ** | RGP30M *** | 1.3 | *150 **250 ***300 | DO-201AD | |
| — | — | — | — | — | RU4A * | RU4B ** | RU4C ** | *1.5 **1.6 | 100 | DO-201AD | |
| 3.5 | — | — | RU4Z | — | RU4M | RU4AM | — | — | 1.3 | 90 | DO-201AD |
| 6.0 | FR601 * | FR602 * | FR603 * | — | FR604 * | FR605 * | FR606 ** | FR607 ** | 1.3 | *150 **300 | R-6 |
*/** : Show different corresponding value of trr and vf
TRR test term : IF=0.5A IR=1.0A IRR=0.25A
Testing environment:TA(Max) = 25℃
Producing And Management flow
Packing Information:
All our products are packed with standard export paper carton. If order quantity is not very big, we will advise to use DHL/UPS/FedEx/TNT/EMS or other Express, however for large quantity, considering high freight charges, usually we will recommend air or sea shipment through your nominated forwarder in Shanghai.
Authentication Certificate
FAQ
Q1:How do I place an order?
A:You can place an order by email or online.
Q2:How can I pay you?
A:T/T, Paypal, Western Union are our most commonly used methods.
Q3:What is the ordering procedure?
A: First we discuss order details, product details. We will email you Proforma based on your order for your information. Then you will be requested to prepay full payment or deposit Before we produce the goods, After receiving the deposit, we start processing the order. If we don’t have stock, we usually need 7-15 days. Before the production is completed, We will contact you for shipping details and balance payment. After the payment is completed, we will start shipping for you.
Q4:How can I get the price?
A:We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are very anxious to get the price, please email us or contact us by other means so that we can provide you with a quotation.
Q5:What is your delivery time?
A:It depends on the number of orders and the season in which you placed the order. Usually we can ship within 7-15 days, if the quantity is relatively large, we need to negotiate the delivery time
Q6: Do your products comply with RoHS directive?
A:Yes,all of our prodects comply with RoHS and REACH Reaulations.
Q7: How do you handle customer's claims?
A: We will reply within 24 hours after getting customer's claims. If products ger defective,we will ask detail failure and application sitation or request return of samples for analysis and provide 8d report in 7 days.
Q8:What kind of transportation is usually used?
A: We can ship the products all the world. DHL, TNT, UPS, EMS, China Post are all available. You can track the situation of your product on website after they are shipped out.

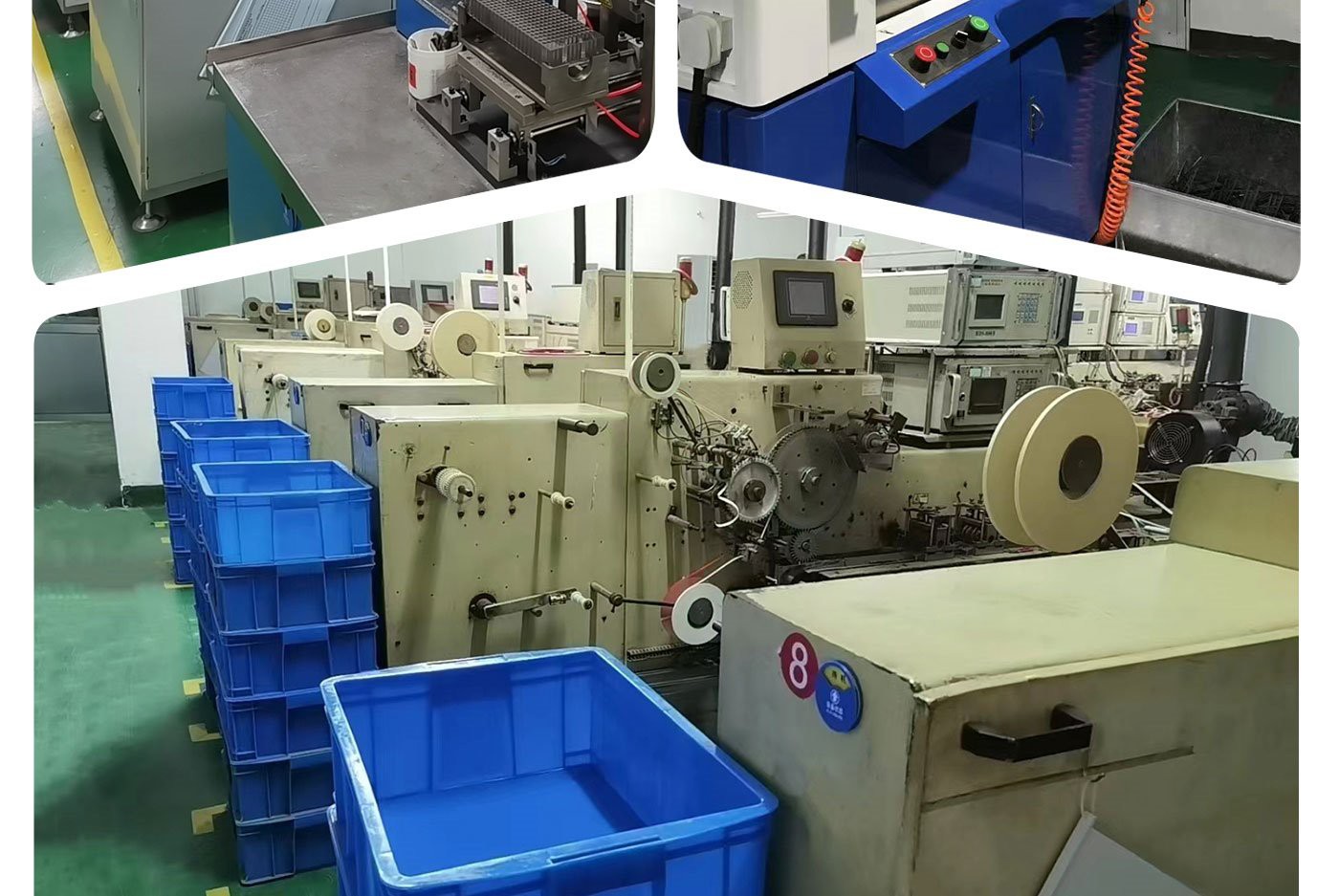

Production Equipment
